Product Type:
Rectified Color Body Porcelain
Digital Print Technology
Essence
Essence
Select from product options below to view larger images and installation photos.
- Product Details
- More Information
- Tech Specs
Product DetailsMore InformationTech Specs
Stocked Colors:
Essence Brown
Essence Cream
Essence Grey
Essence Mahogany
Stocked Size:
8 x 48
Recommended Uses:
Commercial
Residential
Interior Floor
Interior Wall
Exterior Cladding
Fireplaces
Shower Wals
Steam Showers
Pool & Spa
DCOF Rating (See Tech Specs Tab) is a measurement of a tiles frictional resistance. It is the specifier’s responsibility to ensure the chosen tile is appropriate for each interior and exterior application.
The Essence Series is a rectified glazed porcelain. Made to emulate wood planks, the Essence series provides a natural visual element to any design. Its soft grain pattern adds interest and texture and enhances the beautiful variation within the series. Because this material is a porcelain product, minimal maintenance is required. Essence Series is available in 8 × 48 planks and four colors.
Piece to piece variation in shade or color are inherent in all fired clay products; therefore, it is recommended to mix tiles from several boxes at a time during installation to achieve the best range of color. When mixing sizes within a series, shade, texture, and calibration differences should be expected. This series is suitable for residential and commercial applications.
For proper bonding, medium bed mortar should be used when installing tiles with a dimensional length greater than 15 inches, and rectangular shape and plank tile, per industry standards. Proper thinset coverage is also necessary, and in some cases, back buttering of tile may be required.

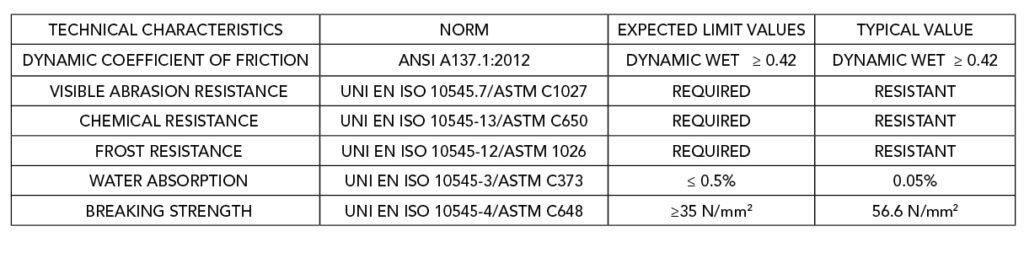

| TECHNICAL CHARACTERISTICS | NORM | EXPECTED LIMIT VALUES | TYPICAL VALUE |
|---|---|---|---|
| DYNAMIC COEFFICIENT OF FRICTION | ANSI A137.1 / ANSI A326.3 | DYNAMIC WET ≥ 0.42 | DYNAMIC WET ≥ 0.42 |
| VISIBLE ABRASION RESISTANCE | ISO 10545-07 / ASTM C1027 | REQUIRED | RESISTANT |
| CHEMICAL RESISTANCE | ISO 10545-13 / ASTM C650 | REQUIRED | RESISTANT |
| FROST RESISTANCE | ISO 10545-12 / ASTM C1026 | REQUIRED | RESISTANT |
| WATER ABSORPTION | ISO 10545-03 / ASTM C373 | ≤ 0.5% | ≤ 0.05% |
| BREAKING STRENGTH | ISO 10545-04 / ASTM C648 | ≥ 35 N/mm² | 56.6 N/mm² |
DCOF Rating is a measurement of a tiles frictional resistance. It is the specifier’s responsibility to ensure the chosen tile is appropriate for each interior and exterior application.
